DIRECT DRIVE FRAMELESS MOTORS

Unparalleled Performance Driven Design with Applimotion Technology



 LINEAR MOTORS

Air-core linear motor kits for precision high response systems.



 ROTARY MOTORS

Permanent magnet three phases ring type, low profile, direct drive motors.


IRONLESS

Low-Profile Direct Drive Motors for the World’s Machines and Robots



Javelin™ Series
The Javelin Series enables OEMs to design high performance, reliable, small and lightweight systems using flexible and easy-to-integrate linear motor components. The Javelin Series’ state-of-the art magnetic designs deliver high acceleration and high speeds in compact form factors. Direct drive technology and air core (ironless) construction provide good mechanical stiffness, low cogging and zero backlash, reducing settling times and increasing system performance and throughput.

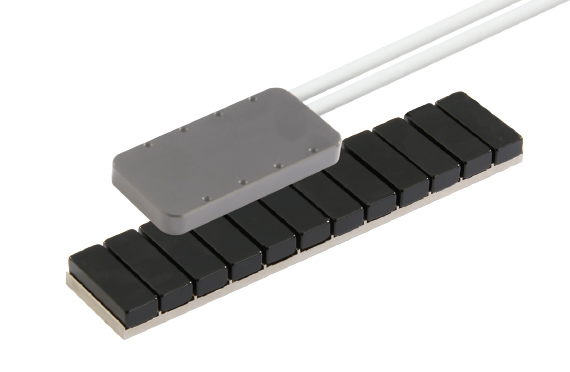

Model: Javelin Single-Sided
Quick Specs: Continuous force rating to 8.2N, peak force rating to 24.6N, speeds up to 24m/s (@100V), low (<2N) motor attraction force.



Specifications

Continouse Force                 4.1 to 8.2N

Peak Force                         12.3 to 24.6N

Maximum Speed @100V      9 to 24m/s

Peak Current                       3.7 to 8.5 Amps

Magnet Pole Pitch                22.86mm

Motor Attraction Force          <2N

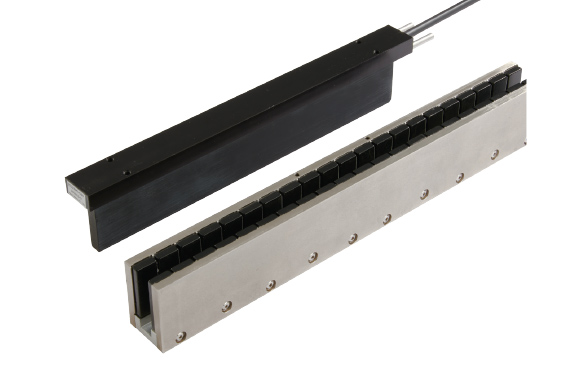

Model: Javelin Double-Sided
Quick Specs: Continuous force rating to 143N, peak force rating to 420N, speeds up to 24m/s (@100V), zero motor attraction force.

Specifications
Continous Force                   49 to 143N
Peak Force                         148 to 420N
Maximum Speed @100V      3 to 21m/s
Peak Current                       10.0 to 22.2 Amps
Magnet Pole Pitch                29.21, 30.0mm
Motor Attraction Force          0N


VOICE COIL

Compact Voice Coil Motors for Highly Dynamic Motion Profiles

Juke™ Series
The Juke Series enables OEMs to move light payloads with high acceleration and dynamic motion profiles. No commutation is required, simplifying wiring and increasing system reliability. Moving magnet and moving coil configurations make it easy for the Juke Series to be tightly integrated into compact, lightweight precision assemblies.

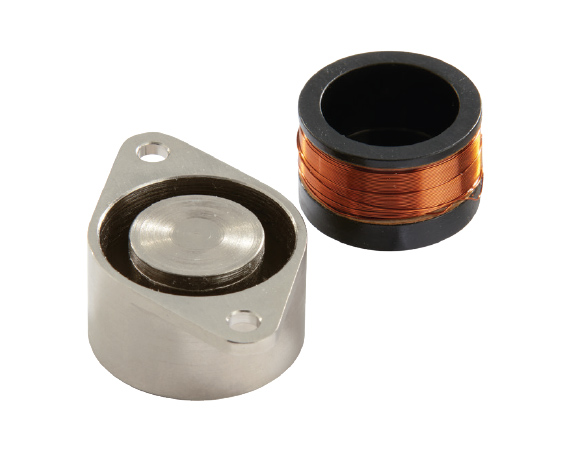

Model: Juke Round Body
Quick Specs: Peak force to 46N, stroke to 40mm, continuous power to 18W.

Specifications
Peak Force             5 to 46N
Stroke                     2 to 40mm
Continous Power    3 to 18W
Width                     19 to 32mm
Length                   25 to 38mm

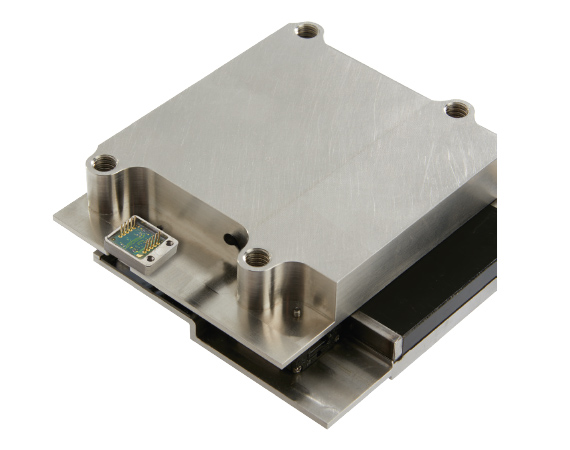

Model: Juke Flat Body
Quick Specs: Peak force to 175N, stroke to 20mm, continuous power to 65W.



Specifications
Peak Force    8 to 175N
Stroke    6 to 20mm
Continuous Power    25 to 65W
Width    55 to 140mm
Length    40 to 120mm





TORQUE
Low-Profile Direct Drive Motors for the World’s Machines and Robots



Omni™ Series
The Omni Series enables OEMs to design high performance, reliable, small and lightweight systems using flexible and easy-to-integrate rotary motor components. The Omni Series is offered in a wide range of low-profile form factors with a large through hole for convenient routing of cables, optics, and other system elements.






Model: UTH
Quick Specs: Through hole diameter to 533mm, continuous torque to 87.6Nm, peak torque to 263Nm, max speed up to 5000rpm



Specifications
Continuous Torque    0.02 to 5.9Nm
Peak Torque    0.06 to 17.7Nm
Diameter (Stator OD)    45 to 165mm
Through Hole (Rotor ID)    32 to 120mm
Maximum Speed    up to 5,000rpm

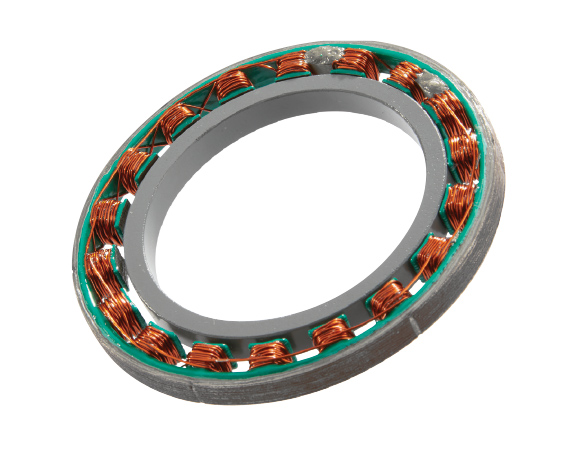

Model: ULT
Quick Specs: Through hole diameter to 165mm, continuous torque to 5.9Nm, peak torque to 17.7Nm, max speed up to 5000rpm



Specifications
Continuous Torque    0.03 to 87.6Nm
Peak Torque    0.09 to 263Nm
Diameter (Stator OD)    22 to 533mm
Through Hole (Rotor ID)    13 to 432mm
Maximum Speed    pu to 5,000rpm

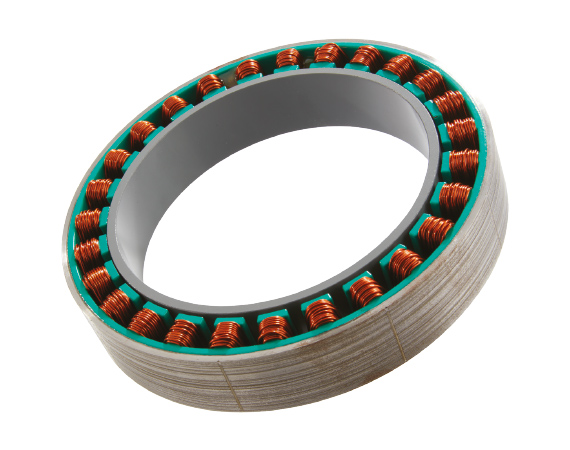

Model: UTO
Quick Specs: Outside-rotating motors with through hole diameter to 100mm, continuous torque to 8.2Nm, peak torque to 26.4Nm, max speed up to 5000rpm



Specifications
Configuration    Outside rotating
Continuous Torque    0.01 to 8.2Nm
Peak Torque    0.03 to 24.6Nm
Diameter (Rotor OD)    0.03 to 24.6mm
Through Hole (Stator ID)    9 to 100mm
Maximum Speed    up to 10,000rpm






SLOTLESS
Zero Cogging Direct Drive Motors for Exceptionally Smooth Motion

Agility™ Series
Designed with ZeroCogTM™ slotless motor technology from Applimotion, the Agility Series enables OEMs to achieve extremely smooth and highly accurate motion profiles using flexible and easy-to-integrate motor components. Ideally suited for scanning, pointing, measuring and cutting applications that require extremely smooth velocity control and highly accurate positioning, the Agility Series delivers best-in-class torque ripple and zero cogging.
Omni UTS Rotary Motor

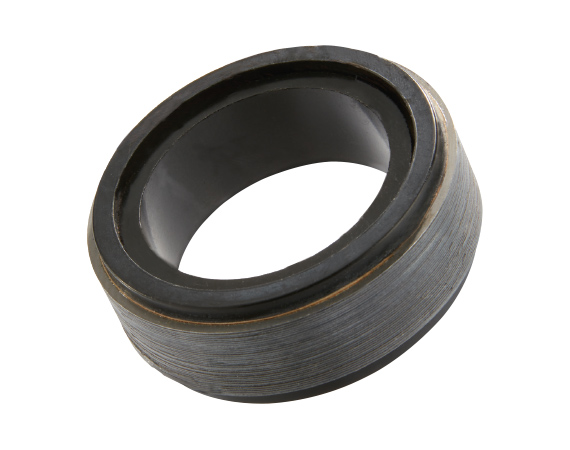

Model: UTS
Quick Specs: Through hole diameter to 265mm, continuous torque to 13.6Nm, peak torque to 40.8Nm.

Specifications
Continuous Torque    0.05 to 13.6Nm
Peak Torque    0.15 to 40.8Nm
Diameter (Stator OD)    19 to 292mm
Through Hole (Rotor ID)    14.5 to 241mm
Stator Length    30 to 48mm
Pole Count    6 to 64




ARC
Low-Profile DDR Motors for Arc Segment and Large Diameter Motion

Infinity™ Series
The Infinity Series enables OEMs to move light payloads in smooth and accurate arc-shaped and full 360-degree rotary motion profiles. Ultra-thin arc-shaped motor segments can be used individually or interconnected to create exact partial arc segment motion or full 360-degree rotary motion. Modular construction allows for virtually unlimited diameter and large through holes. This level of flexibility is not possible with conventional motor designs.
infinity Arc Rotary Motor

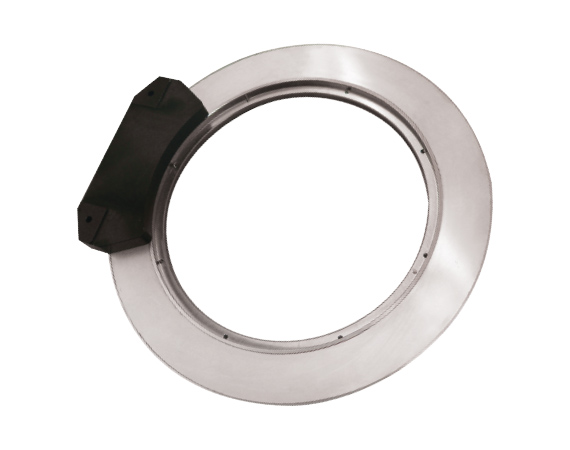

Model: ARC
Quick Specs: Standard outside diameter to 765mm, continuous torque to 63.4Nm, peak torque to 190Nm.

Specifications
Configuration    Axial arc-segment forcers
Continuous Torque    0.65 to 63Nm
Peak Torque    1.95 to 190Nm
Outer Diameter    112 to 765mm
Height (Axial Length)    20 to 40mm
Peak Current    3.4 to 6.6 Amps
